Inline UV Curing with Hot Air Dryer

Inline UV Curing with Hot Air Dryer

Key Features

  • This is specially design Dryer it includes the Hot air dryer and UV dryer in one single conveyor.
  • Article Hanging Conveyor with self rotating Jigs.
  • Easy to Operate.
  • 4 Nos 25” UV Lamp, can use two lamp at the time.
  • Speed : Adjustable conveyor speed with AC Geared motor and drive.
  • Timing for Hot air dryer : 10 min ( Variable ) Specially design air curtain – before and after of Hot air dryer. The technology will help to prevent to heat loss and for power saving.

This is a special design machine to cure 3 dimensional UV coated products. Conveyor design is such where UV rays touched all surface of the product and it cures perfectly We have different model in this as per the product specifications as well out put speed.

Specification

  • Machine Dimension: 2391 x 1614 x 1877(mm)
  • Power Supply: 3 PH + N
  • Power Consumption: 20 kW (Approx)
  • Conveyor Speed: Variable With AC Drive
  • Material: MS Powder Coating or SS 304
Inline UV Curing with Hot Air Dryer

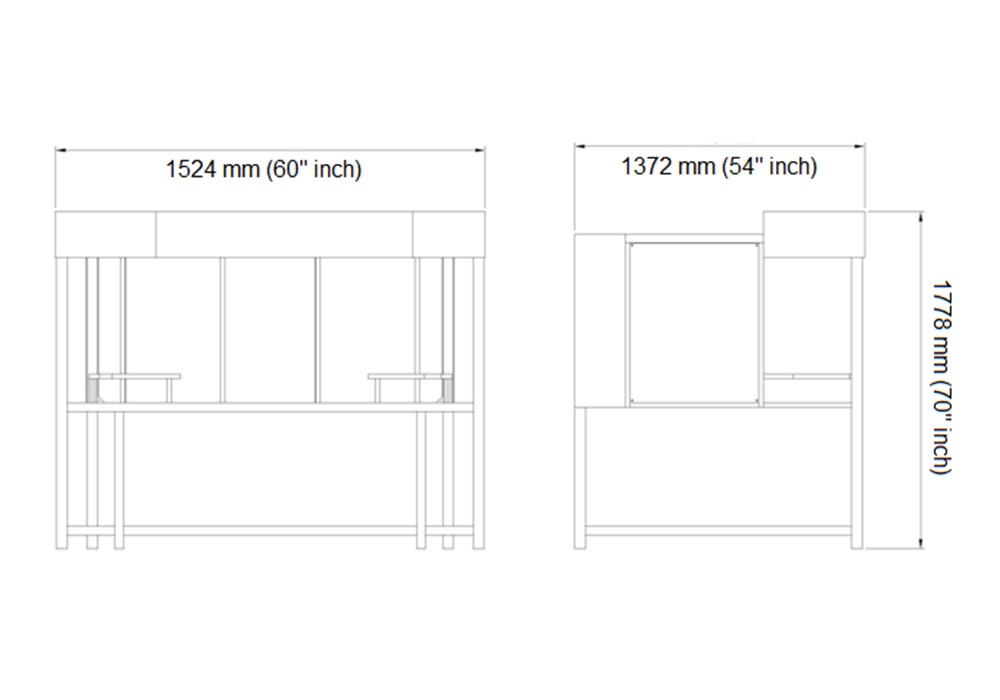

Floor Dimension
