CRP 33M - Creasing & Perforation Machine

CRP 33M - Creasing & Perforation Machine

Key Features

  • Manual Feeding
  • Sizes from visit card to 330 mm x 650 mm
  • From 70 gsm to 380 gsm card
  • First and last crease to 5 mm from edge
  • Optional linear perforating blade and scoring blade.
  • Skew adjustment.
  • Crease bar auto release when paper jammed.
  • Can creasing on laminated / UV coated paper.
  • Infinite crease depth adjustment.
  • LCD panel operation display.

CRP 33m Creasing & Perforation Machine

Specification

  • Machine Dimension: 1100 x 510 x 380 ( mm )
  • Power: 220V AC ( 50HZ )
  • Power Consumption: 150 WATT
  • Paper Length: 90 mm – 900 mm
  • Paper Width: 50 mm – 330 mm
  • Paper Thickness for Crease: MIN 100 gsm – MAX 350 gsm
  • Paper Thickness for Perforating: MIN 100 gsm – MAX 250 gsm
  • Min Crease Gap: CREASE : 1mm : PERFORATING : 10 mm
  • Min Gap from Leading Edge to First Crease: CREASE : 1mm : PERFORATING : 10 mm
  • Speed: 35 – 42 SHEETS / MIN
  • Max Crease in Single Pass: 32
  • Program Memory Max: 30
CRP 33M - Creasing & Perforation Machine

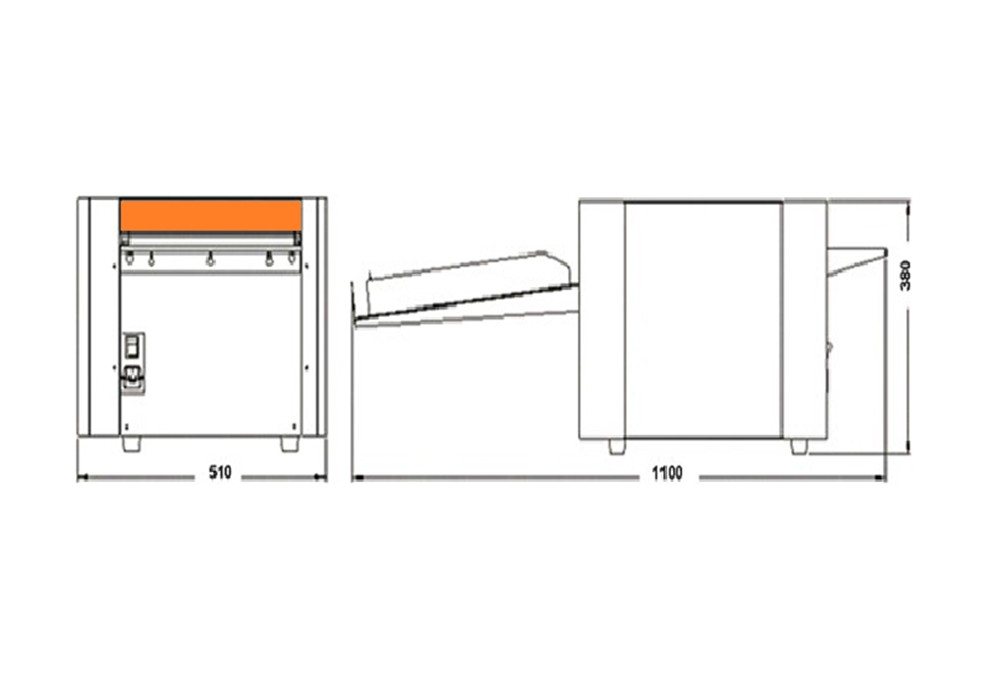

Floor Dimensions
