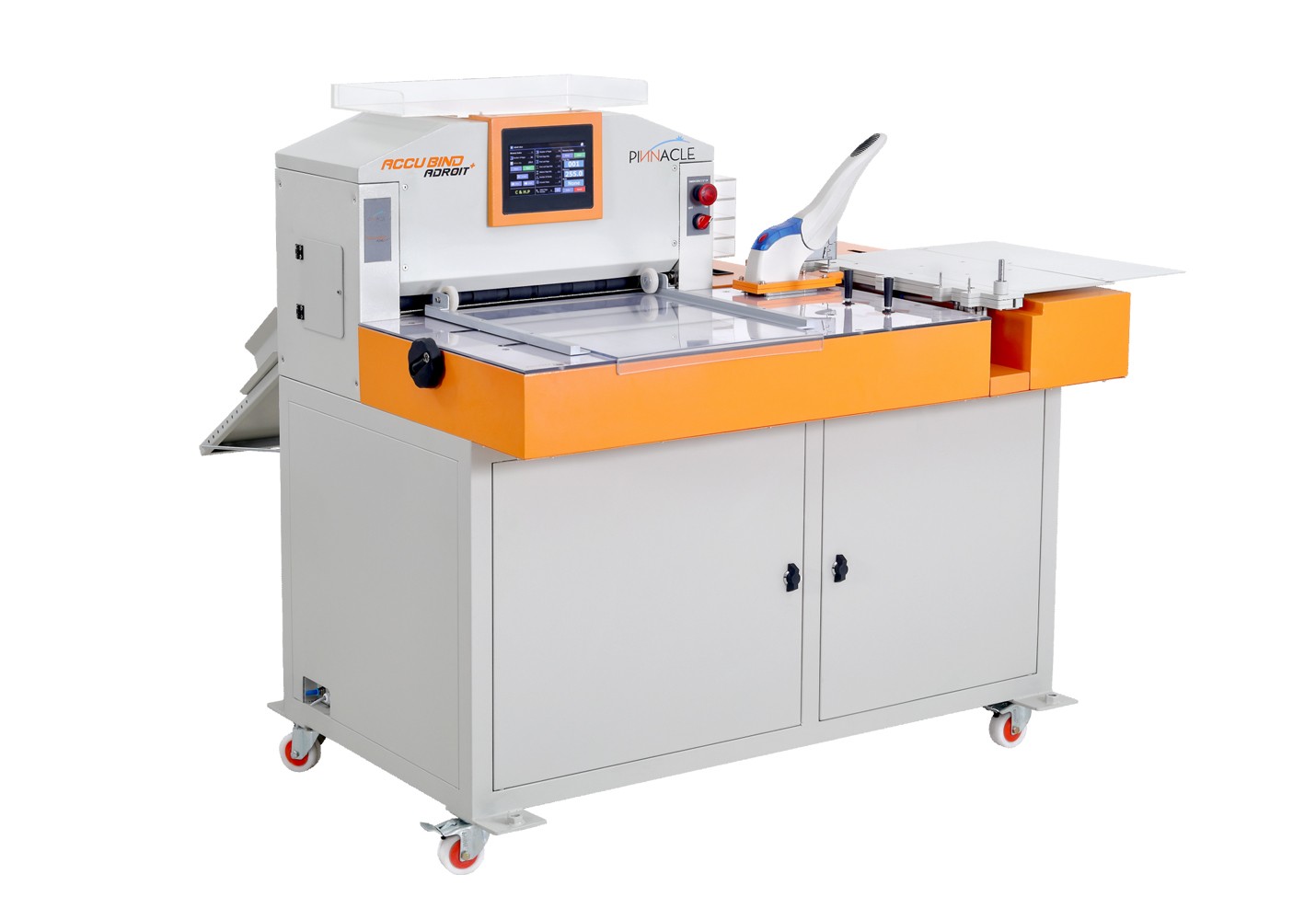

AccuBind Adroit – 401

AccuBind Adroit – 401

Key Features

  • Digital Microcontroller with a large LCD touch screen to pre defines & save each project.
  • Two binding options are available window cutting & creasing, with hole punching & stapling
  • 99 programs can be stored with precise memory of window cutting, creasing & hole punching measurement
  • Performs multiple operations in a single run to create fold covers and table standees, creates up to 6 windows or crease per sheet in a single run
  • Combine the process of window cutting, hole punching and stapling process with utmost precision, done in a single window
  • V-Shape Process Our patented Hole punch in V-Shape technology arrange the prints in V-Shape for lay flat opening

AccuBind Adroit 401 is a versatile Binding machine. The uniqueness lies in the multiple uses yet simple operations that are involved. AccuBind Adroit 401 executes three basic processes involved in Binding: Window Cutting /Creasing, V-Shape Hole Punching & Stapling. All these processes are programmed in a way, which the operator just feeds the prints manually. The V-Shape Photo Book is made with Window Cutting or creasing also. Apart from this, one of the exceptional features consists of performing multiple operations on a single sheet in a single run. This helps in creating Fold Covers, Panel Card Fold Covers and Table Standees which can be used as Calendars, Menu Cards etc.

Specification

  • Machine Dimension: 1422 x 1422 x 1168 (mm)
  • Power Supply: 220V AC (50 Hz)
  • Power Consumption: 250 Watts
  • Speed: 700 Sheets/Hour
  • Max Paper Size: 482 mm x 482 mm | 19” x 19” (inch)
  • Min Paper Size: 320 mm x 203 mm | 12.5” x 8” (inch)
  • Paper Thickness: Min. 150 gsm – Max. 300 gsm
  • Synthetic Paper Thickness: Min. 0.125 mm – Max. 0.175 mm
  • Air Compressor: Pneumatic Connection Required
AccuBind Adroit – 401

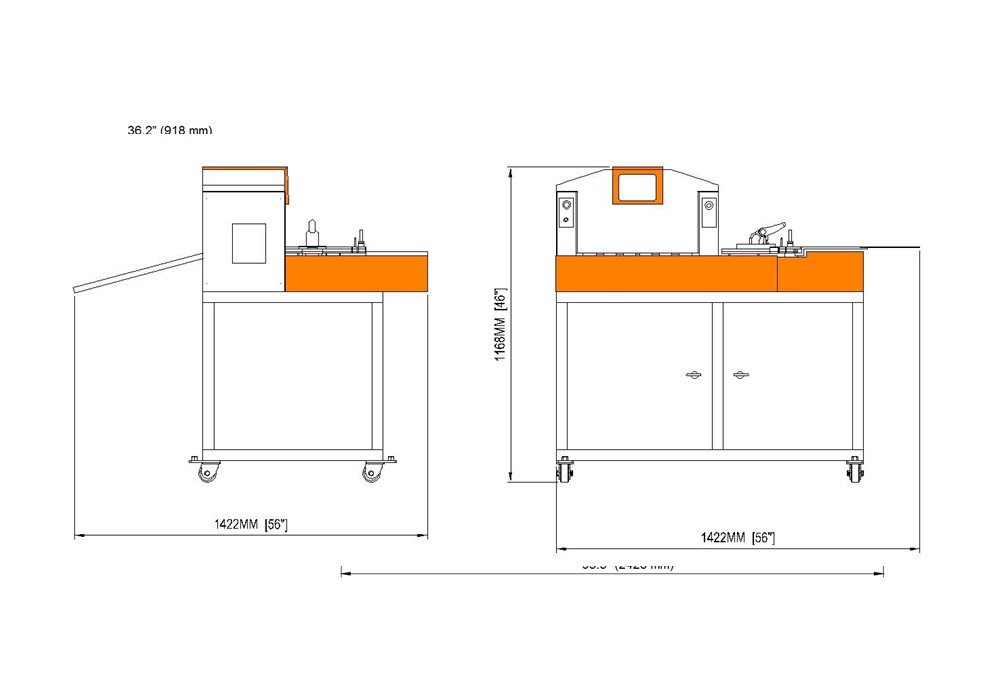

Floor Dimensions

AccuBind Adroit – 401

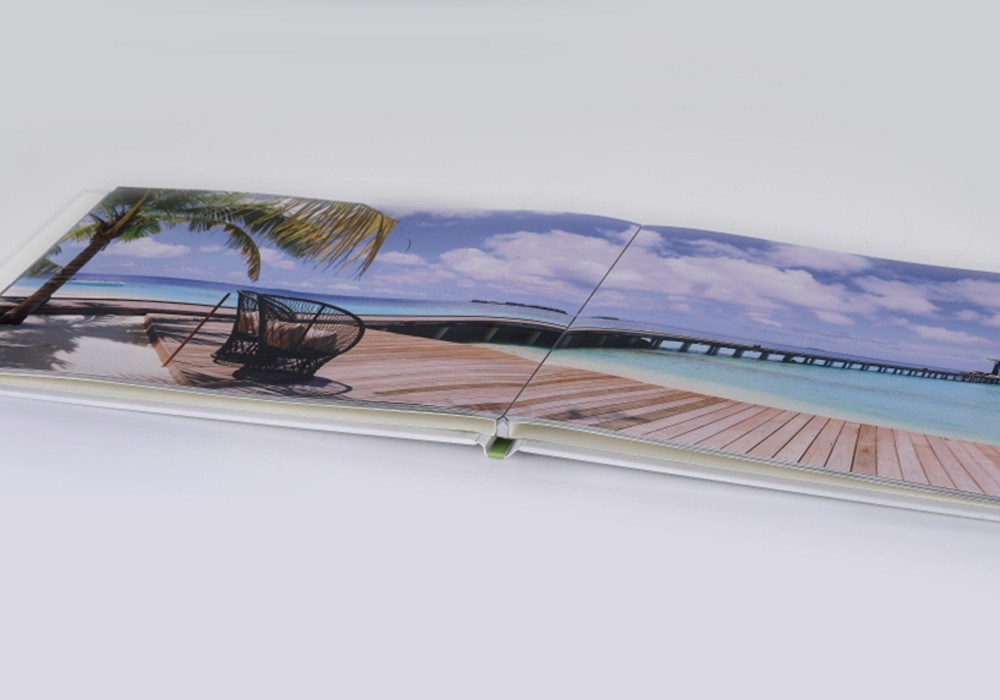

V-Shape LayFlat Binding

AccuBind Adroit – 401

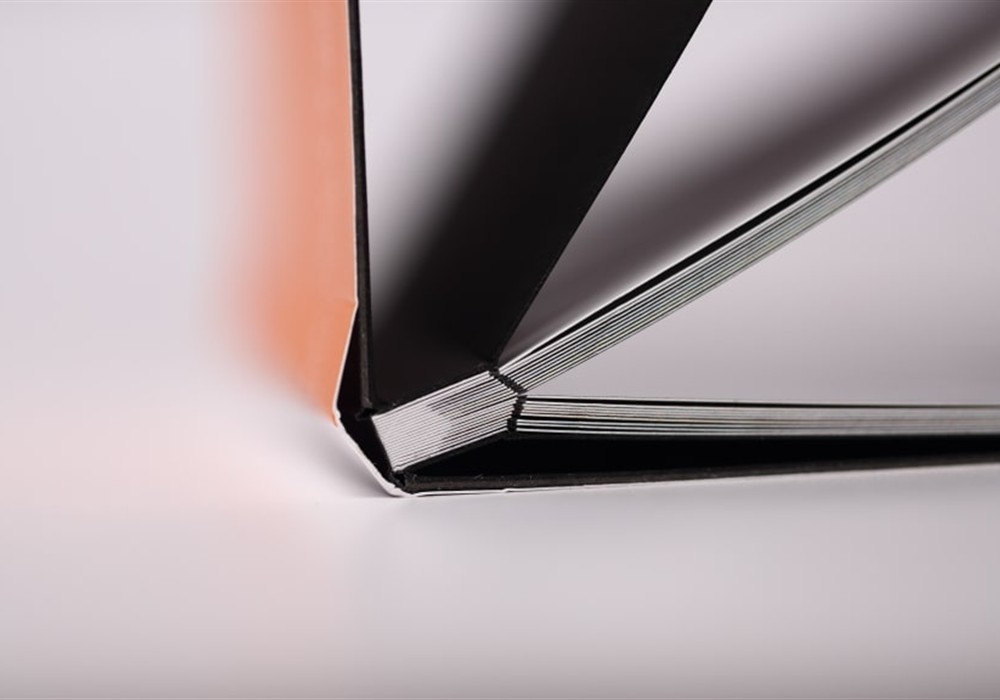

Finish Image
