CRP 51M - Creasing & Perforation Machine

CRP 51M - Creasing & Perforation Machine

Key Features

  • Manual Feeding
  • Sizes from visit card to 330 mm x 650 mm
  • From 70 gsm to 380 gsm card
  • First and last crease to 5 mm from edge
  • Optional linear perforating blade and scoring blade.
  • Skew adjustment.
  • Crease bar auto release when paper jammed.
  • Can creasing on laminated / UV coated paper.
  • Infinite crease depth adjustment.
  • LCD panel operation display.

CRP 33m Creasing & Perforation Machine

Specification

  • Machine Dimension:
  • Power: 220V AC (50Hz)
  • Power Consumption: 150 Watts
  • Paper Length:
  • Paper Width: 20 inch – 508 mm
  • Paper Thickness for Crease: Min. 100 gsm – Max. 350 gsm
  • Paper Thickness for Perforating: MIN 100 gsm – Max. 250 gsm
  • Min Crease Gap: Crease : 1mm : Perforating : 10 mm
  • Min Gap from Leading Edge to First Crease: Crease : 1mm : Perforating : 10 mm
  • Speed: 35 – 42 Sheets/Min.
  • Max Crease in Single Pass: 32
  • Program Memory Max: 30
CRP 51M - Creasing & Perforation Machine

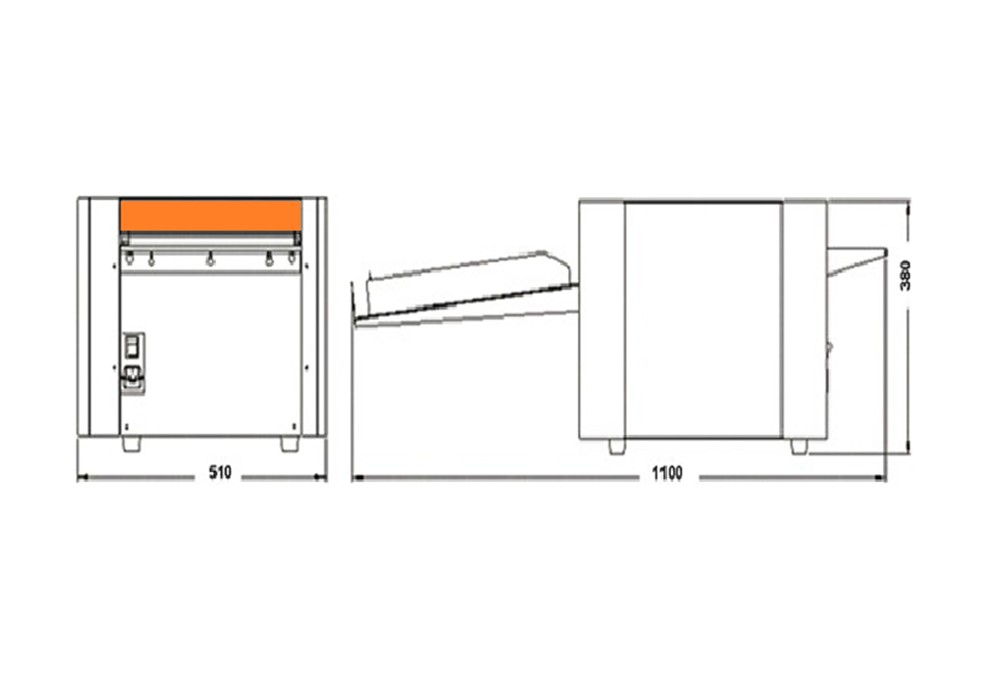

Floor Dimensions
