LF 1000 All in Max

LF 1000 All in Max

Key Features

  • All in one system: Integrated auto feeding, gluing and assembling units;
  • Automatic paper alignment system;
  • Easy to operate via touch screen;
  • Flexible production for different Close Book sizes: 6”x6” to 18”x 18”;
  • Layflat binding technology;
  • Hot melt gluing technology: cheaper cost and faster delivery;

LF1000 All-In Max is a fully automatic book block system which produces Lay Flat book blocks from single sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between sheets. It is all in one station; creaser and folder are included, it is high speed and good for professional photo book.

Specification

  • Book block height: 6”–18” (152mm–460mm)
  • Book block width (open): 12”–36” (305mm–915mm)
  • Maximum thickness: 50mm
  • Cardboard: With or without
  • Glue: Hot melt
  • Cardboard thickness: 0.35mm – 1mm
  • Paper thickness: 0.15mm – 0.3mm
  • Machine dimension: 3.06m × 1.15m × 1.38m
  • Air compressor: 0.6–0.7 MPa, >180 L/min
  • Speed: 1000 Cycles/Hour
  • Power supply: 220V 50Hz Single phase
  • Power consumption: 2000W
  • Weight: 750kg
LF 1000 All in Max

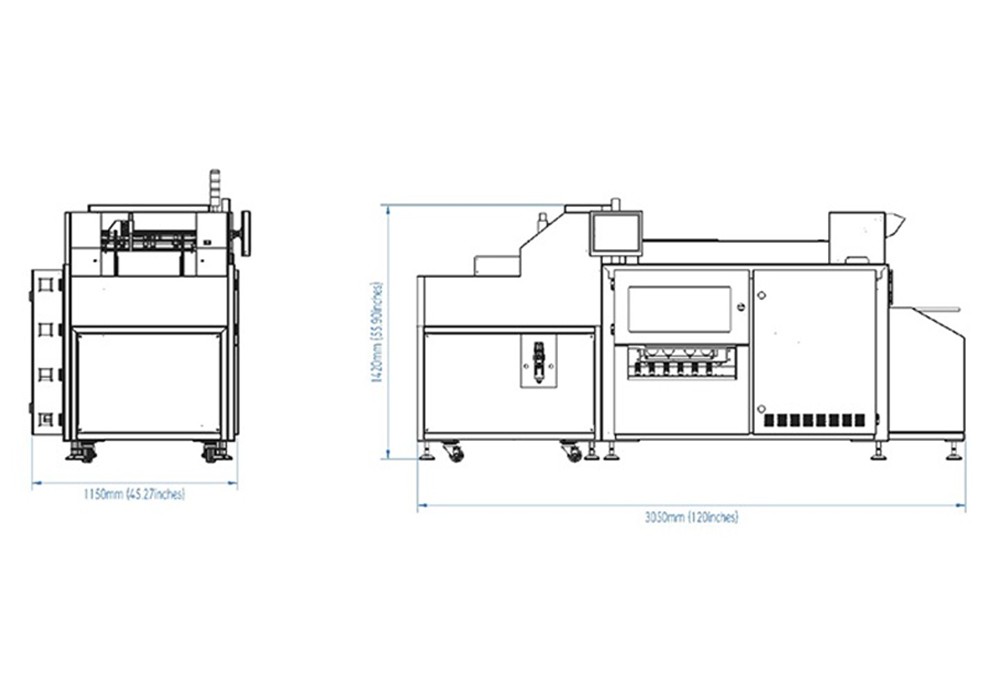

Floor Dimensions

LF 1000 All in Max

Finish Image
