LF 600 mB

Key Features

  • All in one system: Integrated auto feeding, gluing, assembling ;
  • Easy to operate via touch screen;
  • Flexible production for different sizes: 6”x6” to 12”x 18”;
  • Layflat binding technology;
  • Hotmelt gluing technology: cheaper cost and faster delivery;

LF600 All-In is a fully automatic book block system which produces Lay Flat book blocks from single sheets. It can make photo book not only by gluing paper back to back but also by inserting cardboard between sheets. It is all in one station, creaser and folder are included,it is compact and can run in small place.

Specification

  • Book block height: 6”-13” (152mm-330mm)
  • Book block width (open): 12”-36” (305mm-915mm)
  • Maximum thickness: 50mm
  • Cardboard: With or without
  • Glue: Hot melt
  • Cardboard thickness: 0.35mm -1mm
  • Paper thickness: 0.15mm-0.3mm
  • Machine dimension: 1.6m(L) x0.93m (W) x1.40m (H)
  • Air compressor: 0.6-0.7mpa, >180L/min
  • Speed: 600 Cycles /Hour
  • Power supply: 220V 50HZ Single phase
  • Power consumption: 2000W
  • Weight: 500Kg
LF 600 mB

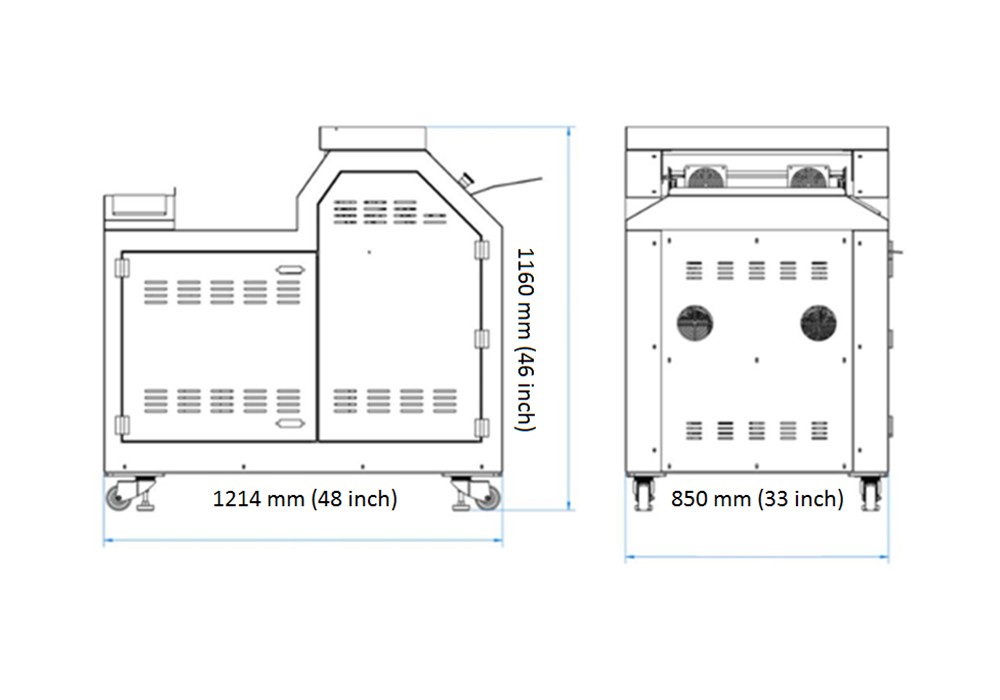

Floor Dimensions

LF 600 mB

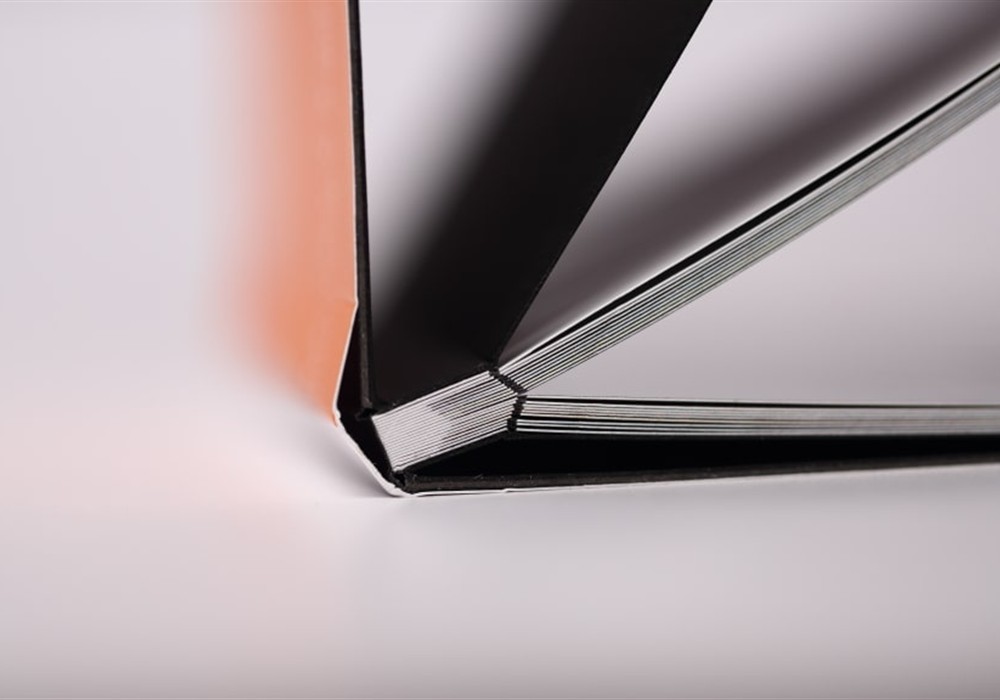

Finish Image
