Adroit Z + A

Adroit Z + A

Key Features

  • It’s an Inline process facilitating which is provided handling the prints with ease with in-built dust cleaning roller system for Dust Free and scratch free lamination.
  • Avoids human error and minimizes wastages
  • Saves Time and Reduces Man Power
  • Even layman can make Photo Book easily
  • Always gives optimum accuracy
  • Occupies Less Space and get maximum output
  • Multiple Window Cut facility for making a small book
  • Single phase machine, less power consumption

Adroit Z a (Auto Inline) helps programming up to 10 Photo books, with varied specifications. Adroit Z a (Auto Inline) is a complete Inline process for V-Shape Binding design to make a Photo Book. The entire Binding processes in Adroit Z a (Auto Inline) are atomized. The entire process is carried out without any human intervention, Once the programming is pre-defined for each book, Adroit Z a (Auto Inline) carries on the entire process right from WINDOW CUTTING, HOLE PUNCHING IN V-SHAPE, DUST CLEANING, THERMAL LAMINATING AND AUTO CUTTING of the Laminated sheets with Utter precision. Thus, in no time, the entire stake of Photo Books is ready to be Stapled and Binded to take a V-Shape LayFlat open Photobook.

Specification

  • Maximum paper Size: 380mm x 510mm
  • Minimum Paper Size: 330mm x 480mm
  • Thickness of synthetic paper: 0.125mm – 0.175mm
  • Air compressor: Pneumatic connection required
  • Thickness of paper: 150 gsm - 300 gsm
  • Speed: 850 Sheets/Hour
  • Power Supply: 220V 50Hz
  • Weight: 750 Kg
  • Maximum power consumption: 6000W
  • Machine dimension: 3480(L) x 1092(W)x 1651(H) (mm)
Adroit Z + A

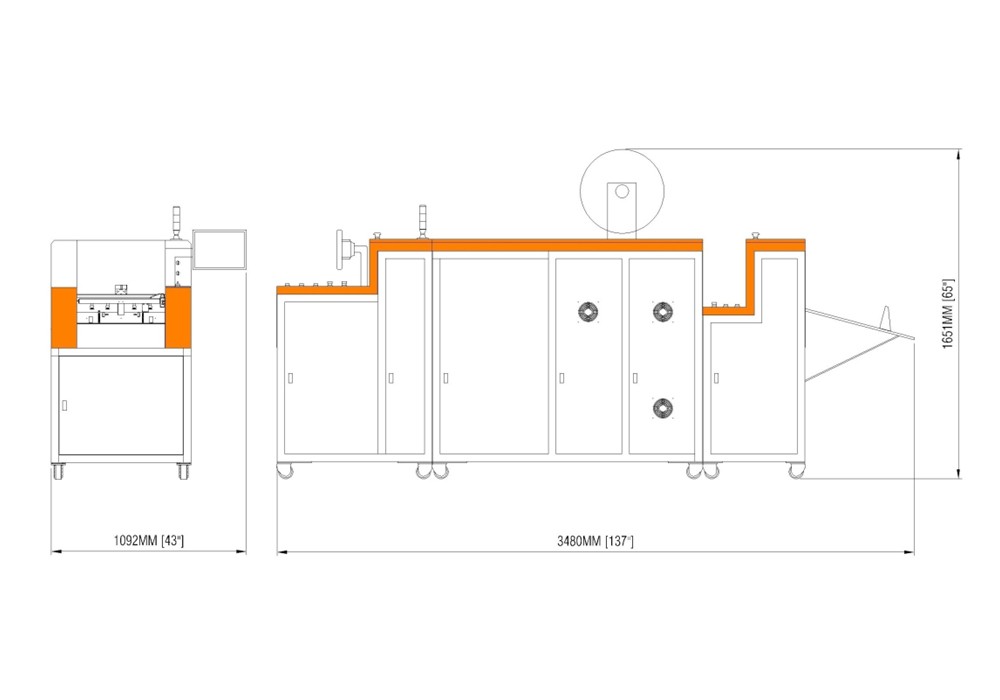

Floor Dimensions

Adroit Z + A

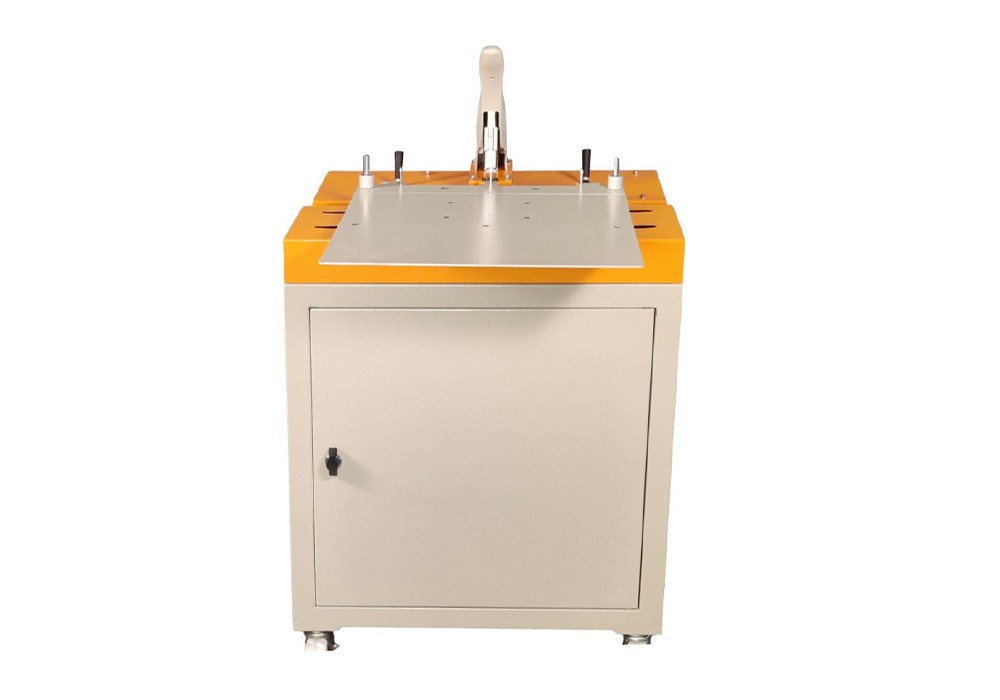

Stapler Unit

Adroit Z + A

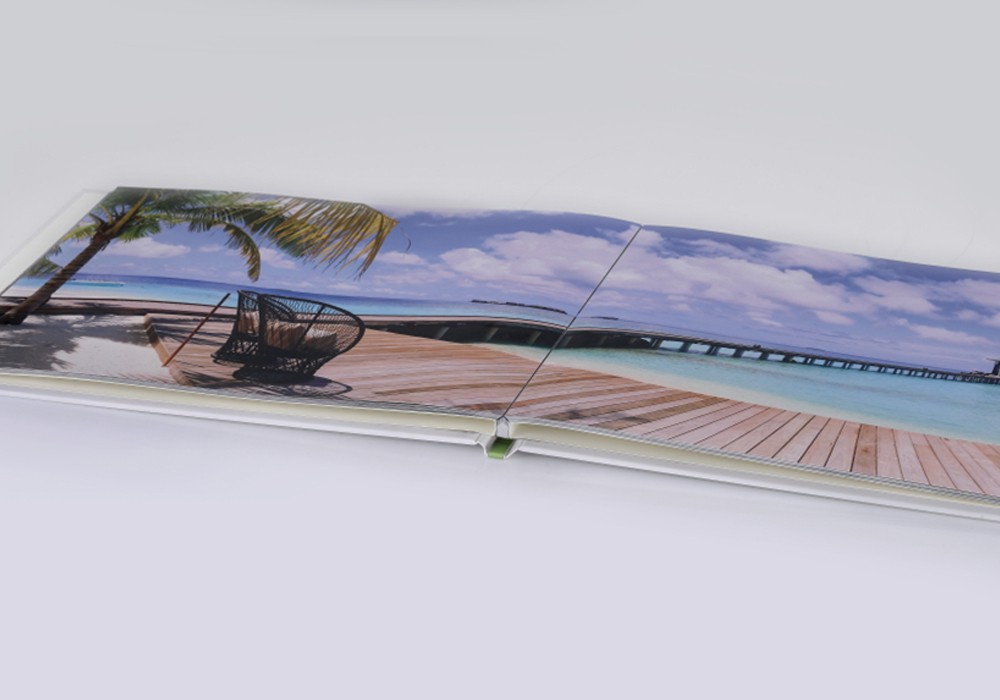

V-Shape LayFlat Binding

Adroit Z + A

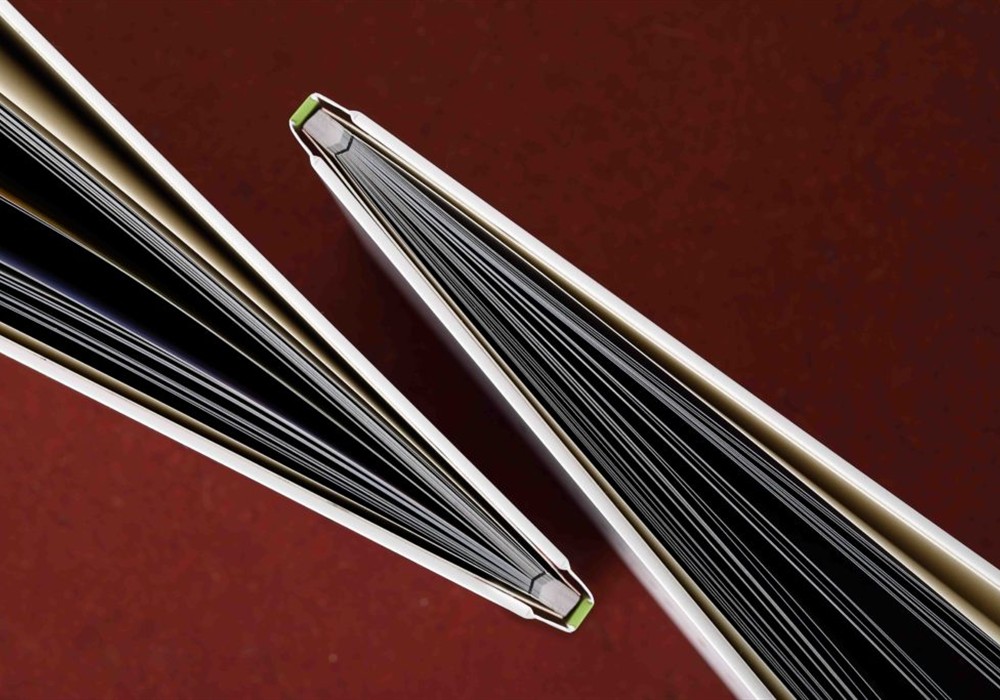

Finish Image
