Adroit Z M

Adroit Z M

Key Features

  • 10” (inch) Touch Control Panel Display Every aspects can be pre-programmed with 10” display with windows 10 OS & PLC Easy & User-friendly touch control program for V-Shape Layflat Binding
  • Manual Feeding Patented technology of the Manual feeder.
  • Auto Cut (Sheet Separator) Built in automatic cutting system for cutting sheets.
  • V-Shape Process Innovative Patented technology for V-Shape lay flat binding.

Adroit Z m, helps programming up to 10 Photo books, with varied specifications. The paper is manually placed at one end of the machine and the processed laminated prints come out from the other end. The entire process is carried out without any human intervention, Once the programming is pre-defined for each book, Adroit Z m carries on the entire includes Manual Paper feeding,  WINDOW CUTTING, HOLE PUNCHING IN V-SHAPE, DUST CLEANING, THERMAL LAMINATING AND AUTO CUTTING of the Laminated sheets with Utter precision. Thus, in no time, the entire stake of Photo Books is ready to be Stapled and Binded to take a V-Shape LayFlat open Photobook.

Specification

  • Machine Dimension: 3378 x 1092 x 1651 (mm)
  • Power Supply: 220V AC (50 Hz)
  • Power Consumption: 6000 Watts
  • Speed: 700 Sheets/Hour
  • Max Paper Size: 380 mm x 510 mm | 15” x 20” (inch)
  • Min Paper Size: 317.5 mm x 381 mm | 12.5” x 15” (inch)
  • Paper Thickness: Min. 150 gsm – Max. 300 gsm
  • Synthetic Paper Thickness: Min. 0.125 mm – Max. 0.175 mm
  • Air Compressor: Pneumatic Connection Required
Adroit Z M

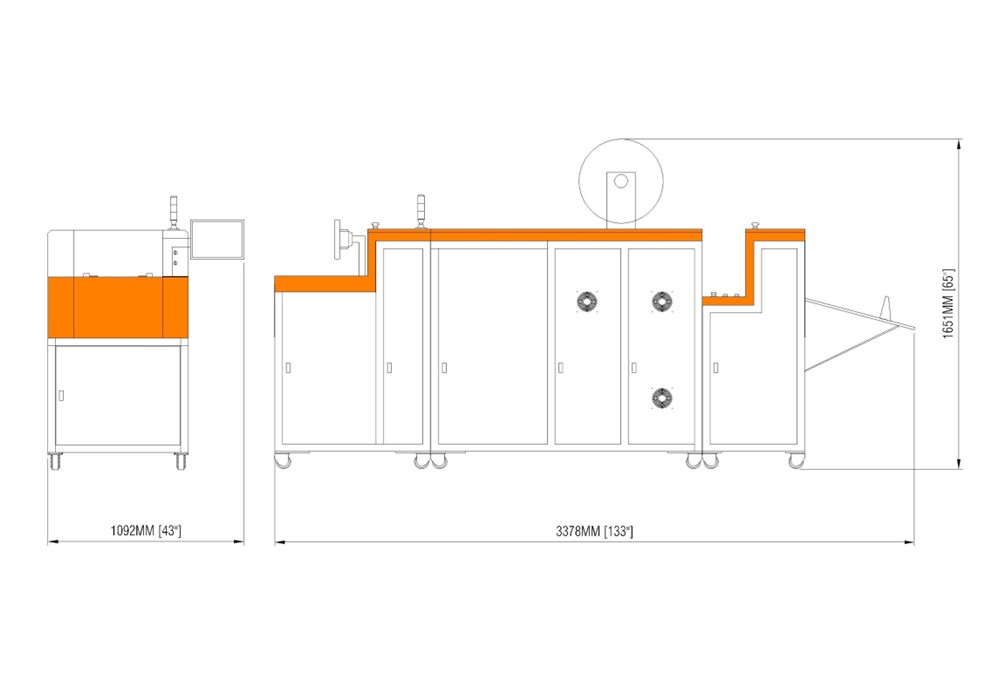

Floor Dimensions

Adroit Z M

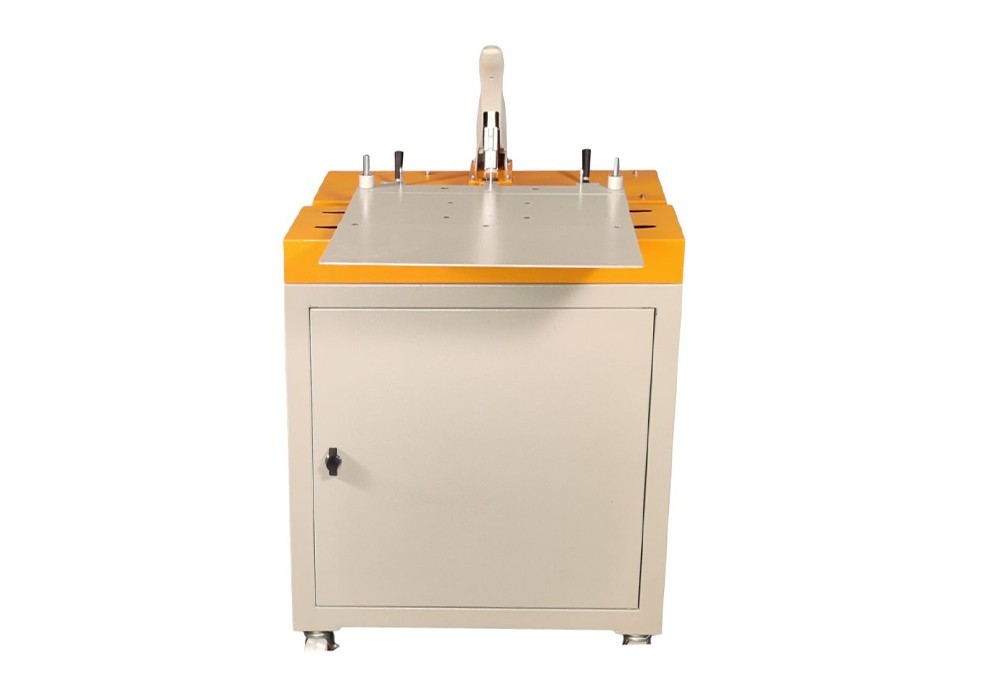

Stapler Unit

Adroit Z M

V-Shape LayFlat Binding

Adroit Z M

Finish Image
