Adroit Z Classic

Adroit Z Classic

Key Features

  • 7” (inch) Touch Control Panel Display Every aspects can be pre-programmed with 7”(inch) display with windows & PLC Easy & User-friendly touch control program for V-Shape Layflat Binding
  • Temperature Controller Individual Temperature controller for both the Lamination Roller
  • Manual Feeding Specially Design feeding Roller which will on/off between two sheet so feeding can be accurate and at the same time we can maintain perfect gap between two sheets
  • V-Shape Process Innovative Patented technology for V-Shape lay flat binding
  • Cutting after Lamination manually

Adroit Z Classic, helps programming  Photo books, with varied specifications. The paper is manually placed at one end of the machine and the processed laminated prints come out from the other end. The entire process is carried out without any human intervention, Once the programming is pre-defined for each book, Adroit Z Classic carries on the entire process right from WINDOW CUTTING, HOLE PUNCHING IN V-SHAPE, DUST CLEANING, THERMAL LAMINATION. The Laminated sheets with Utter precision in entire operation feeding of the Prints and Cutting after Lamination is manual by hand. Thus, in no time, the entire stake of Photo Books is ready to be Stapled and Binded to take a V- Shape LayFlat open Photobook.

Specification

  • Machine Dimension: 965 x 2438 x 1575 (mm) 19” x 19”
  • Power Supply: 220V AC (50 Hz)
  • Power Consumption: 6000 Watts
  • Speed: 700 Sheets/Hour
  • Max Paper Size: 482mm x 482mm | 19” x 19” (inch)
  • Min Paper Size: 317.5mm x 381 m | 12.5” x 15” (inch)
  • Paper Thickness: Min.150 gsm – Max. 300 gsm
  • Synthetic Paper Thickness: Min. 0.125 mm – Max. 0.175 mm
  • Air Compressor: Pneumatic Connection Required
Adroit Z Classic

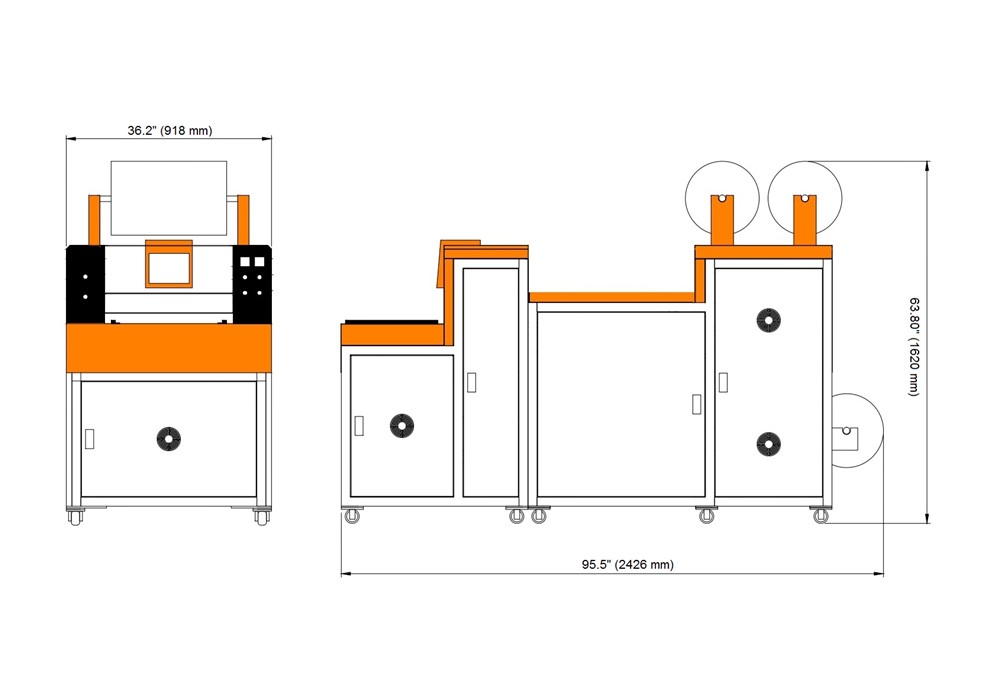

Floor Dimensions

Adroit Z Classic

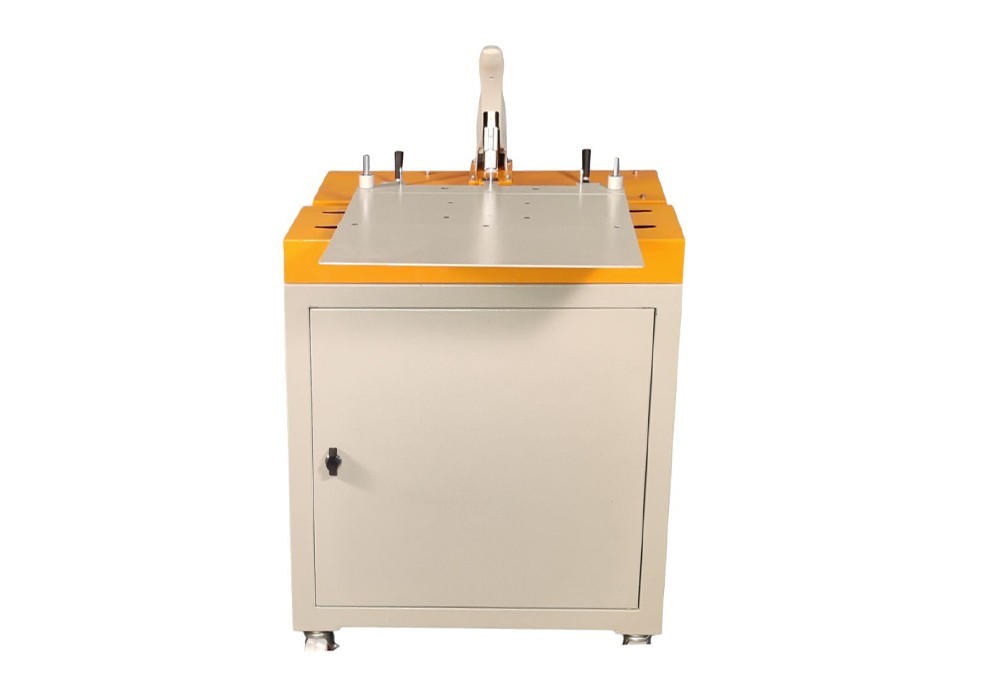

Stapler Unit

Adroit Z Classic

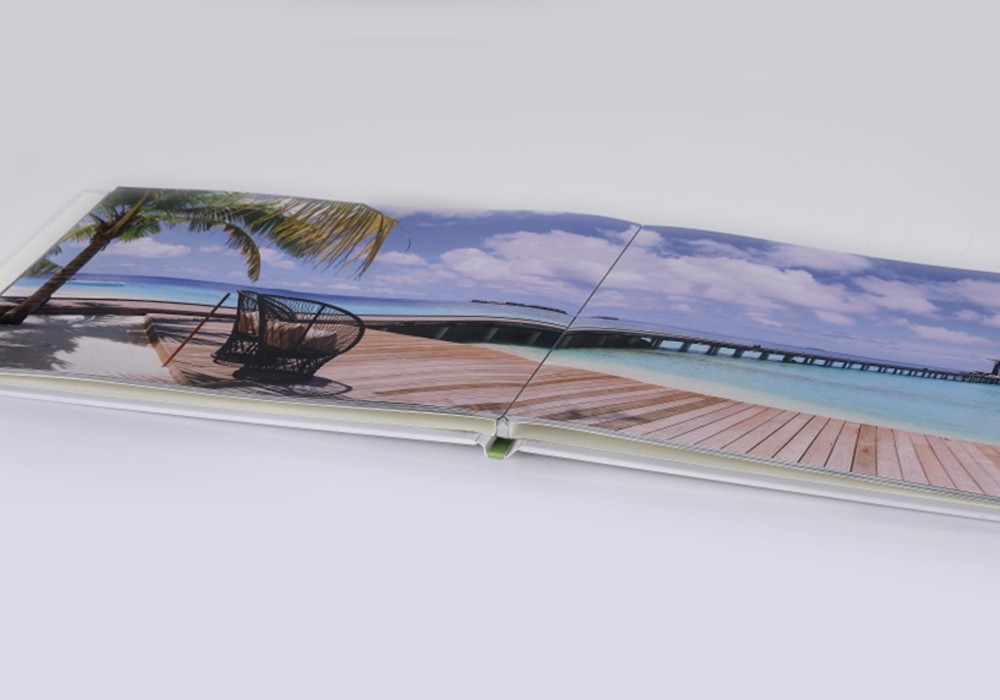

V-Shape LayFlat Binding
