Thermal Lamination TLS 450 M

Thermal Lamination TLS 450 M

Key Features

  • User friendly LCD Control Display to operate various functions.
  • High Accuracy Sensor has been provided to maintain Accurate Temperature.
  • Anti Curl Device.
  • Easily controlled speed for varied papers and lamination films, speed up to 5 Mtr /min.
  • 1”(Inch) core for small lamination film roll & 3”(Inch) core for jumbo Film roll.
  • Inline Trimming and Perforation
  • Standby mode to save the power consumption on idle condition of the machine.

Thermal Lamination TLS 450 m is Pinnacle's latest model developed, especially to give an exotic and enhanced finishing to the media / prints. This is a Manual Feeding Single side lamination machine with Auto cut system also comes with Rewinding system.

Specification

  • Machine Dimension: 1415 x 720 x 1435 (mm)
  • Machine Dimension with Rewinding: 1432 x 720 x 1435 (mm)
  • Power Supply: 220V AC (50 Hz)
  • Power Consumption: 2500 Watts
  • Lamination Speed: Upto 5 Mtr./MIn, Variable
  • Min Paper Size: 200 mm | 200 mm
  • Max Paper Size: 330 mm | 482 mm
  • Thickness of Paper: 125 gsm – 400 gsm
  • Speed: 450 Sheets/Hr
Thermal Lamination TLS 450 M

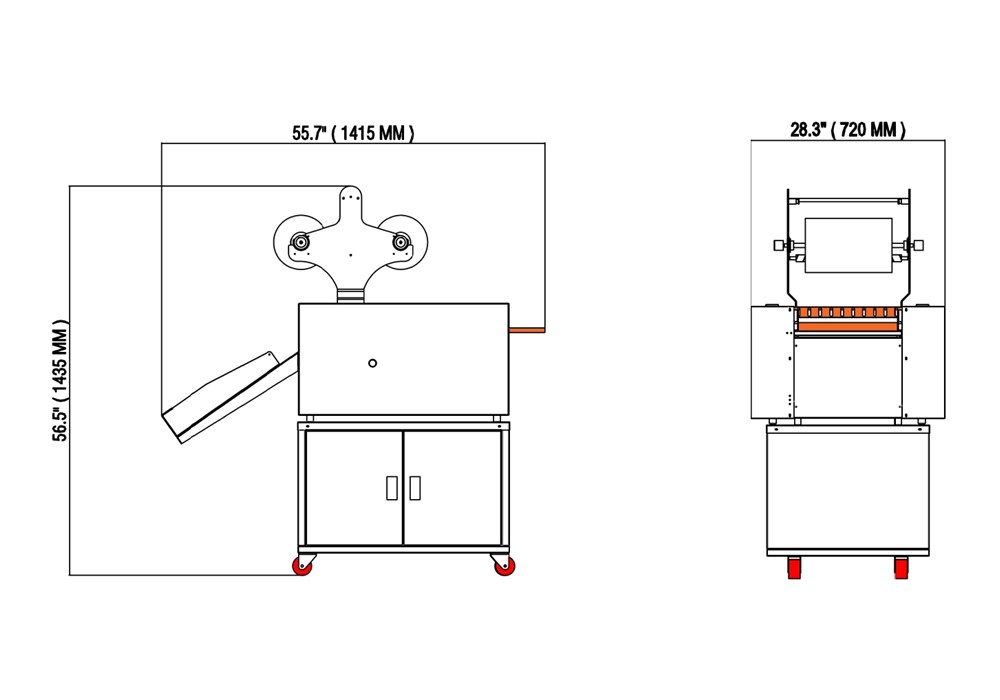

Floor Dimensions

Thermal Lamination TLS 450 M

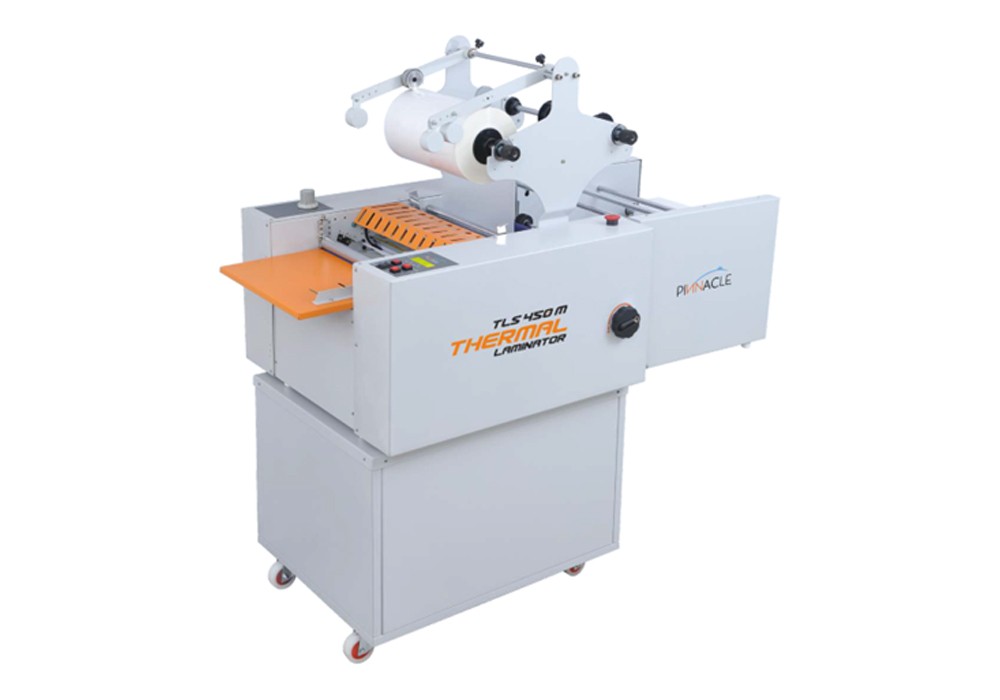

TLS 450m with Rewinding System

Thermal Lamination TLS 450 M

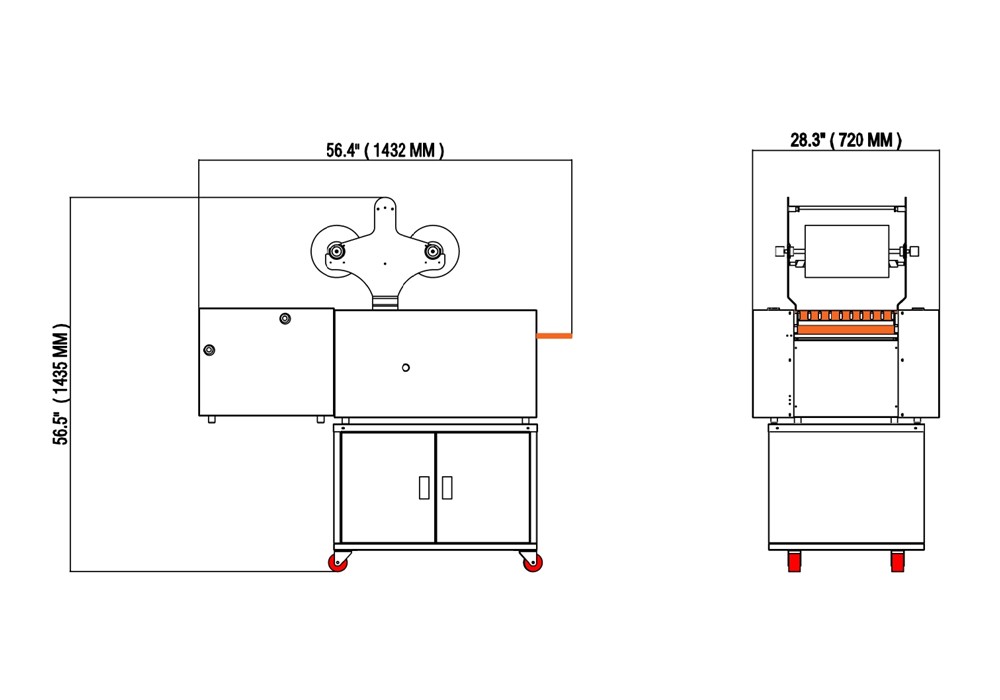

Rewinding System - Floor Dimensions
