Thermal Lamination LP20 SLa

Thermal Lamination LP20 SLa

Key Features

  • User friendly Touch Display to operate various functions.
  • Auto Feeder System (Friction Feeder)
  • Manual Cut After Lamination.
  • High Accuracy Sensor has been provided to maintain Accurate Temperature.
  • Easily controlled speed for varied papers and lamination films, speed up to 5 mtr /min.
  • 1”(Inch) core for small lamination film roll & 3”(Inch) core for jumbo Film roll.
  • Standby mode to save the power consumption on idle condition of the machine.
  • Dust cleaning system before slitting process.
  • Heavy motors are provided to run the jumbo film roller.

Thermal Lamination LP 20 SLa is a combination of Slitting & Double Side Lamination to create a Flat Open Photo Book. With Auto feeding system (Friction Feeder) you can use it either for Inline Slitting with Double Side Lamination or only for Double side Lamination purpose also.

Specification

  • Machine Dimension 20 (inch): 1016 x 965 x 1143 (mm)
  • Power Supply: 220V AC (50 Hz)
  • Power Consumption 20 (inch): 2500 Watts
  • Power Consumption 13 (inch): 1800 Watts
  • Lamination Speed: Upto 5 Mtr. / Min.
  • Max Paper Size: 508 mm | 20” (inch)
  • Thickness of Paper: 170 gsm – 300 gsm
  • Thickness of Synthetic Paper: 0.125 mm– 0.175 mm
Thermal Lamination LP20 SLa

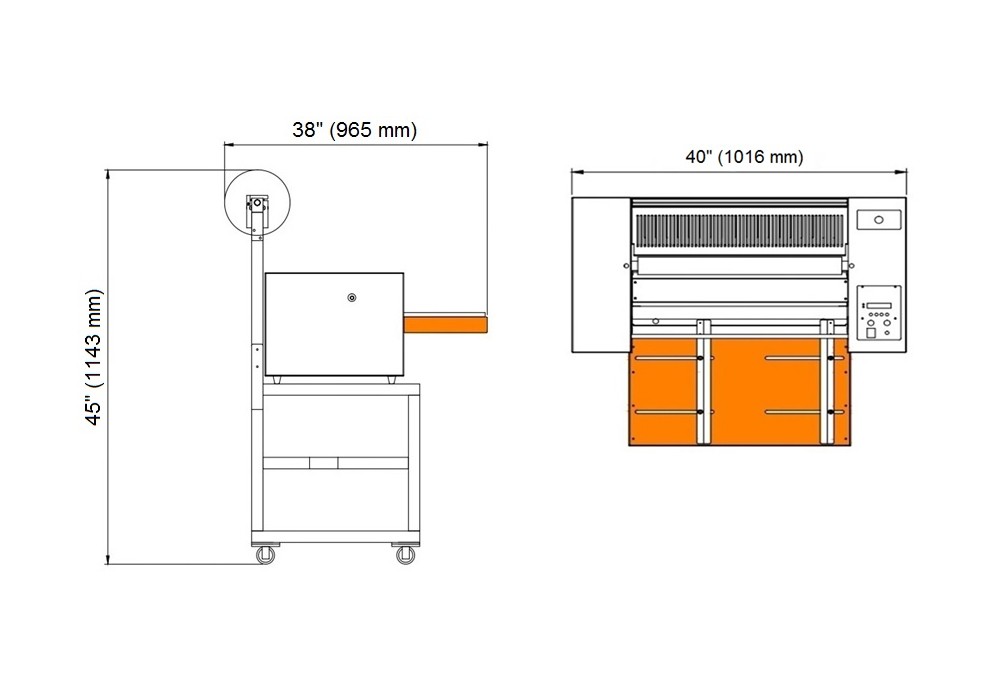

Floor Dimensions

Thermal Lamination LP20 SLa

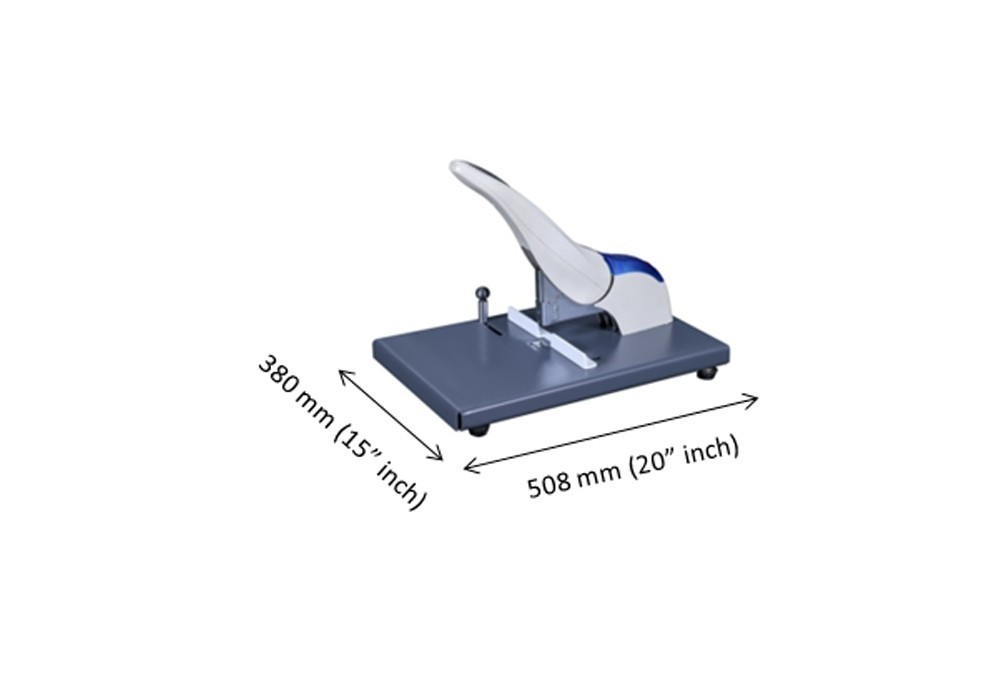

Creasing Machine

Thermal Lamination LP20 SLa

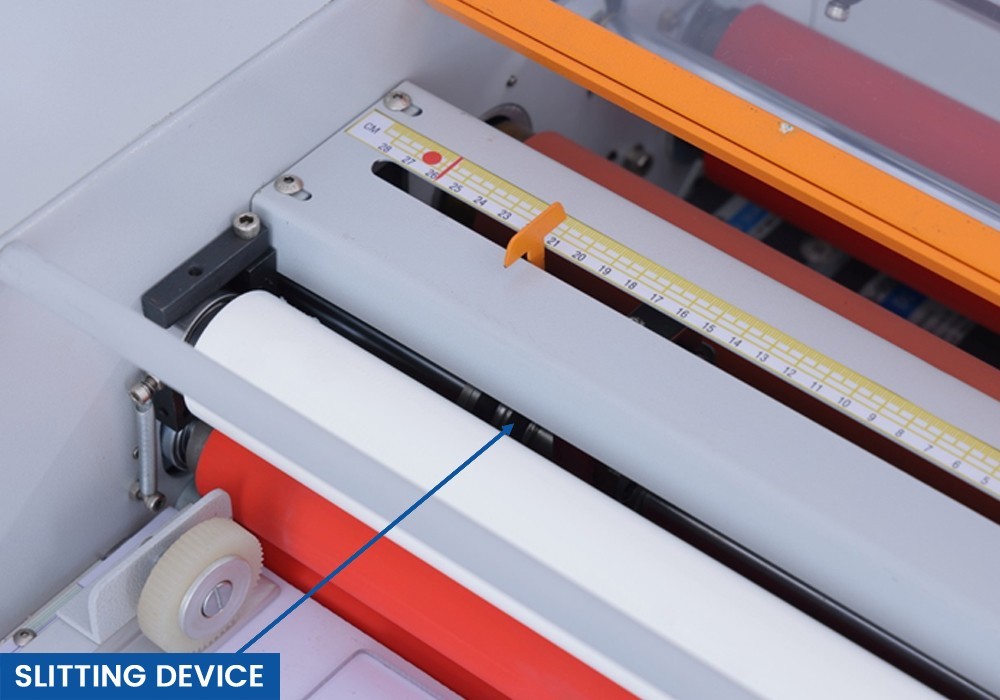

Slitting Device

Thermal Lamination LP20 SLa

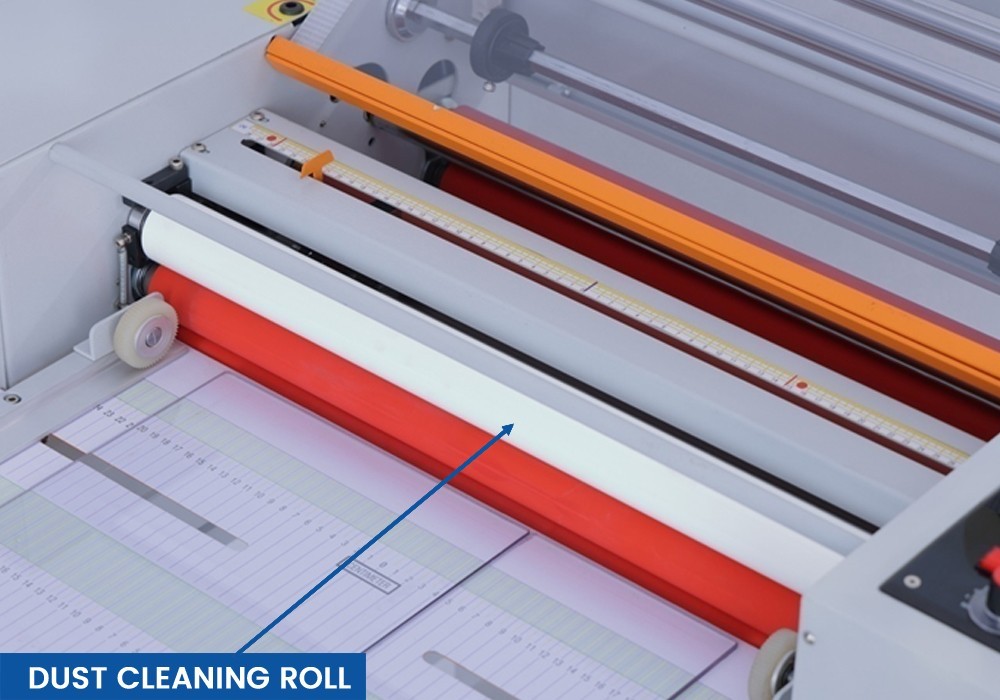

Dust Cleaning Roll

Thermal Lamination LP20 SLa

LP20 SLA Binding

Thermal Lamination LP20 SLa

Finish Image
