Thermal Lamination LP13 SLm

Thermal Lamination LP13 SLm

Key Features

  • User friendly Keypad Control Display to operate various functions.
  • Manual Feeding System
  • Manual Cut After Lamination
  • High Accuracy Sensor has been provided to maintain Accurate Temperature.
  • Easily controlled speed for varied papers and lamination films, speed up to 5 mtr /min.
  • 1”(Inch) core for small lamination Film roll & 3”(Inch) core for jumbo Film roll.
  • Standby mode to save the power consumption on idle condition of the machine

Thermal Lamination LP 13 SLm is a combination of Slitting & Double Side Lamination to create a Flat Open Photo Book. You can use it either for Inline Slitting with Double Side Lamination or only for Laminating purpose of Double Side Lamination also.

Specification

  • Machine Dimension 13 (inch): 735 x 700 x 1260 (mm)
  • Power Supply: 220V AC (50 Hz)
  • Power Consumption 13 (inch): 1800 Watts
  • Lamination Speed: Upto 5 Mtr./Min.
  • Max Paper Size: 330 mm | 13” (inch)
  • Thickness of Paper: 170 gsm – 300 gsm



Application in Various Industries - Visual Books

  • Architecture
  • Home Decor & Interior Design
  • Automobile
  • Food & Pharmacy
  • Fashion
  • Travelling
  • Wedding
  • Baby Albums
  • School Albums
Thermal Lamination LP13 SLm

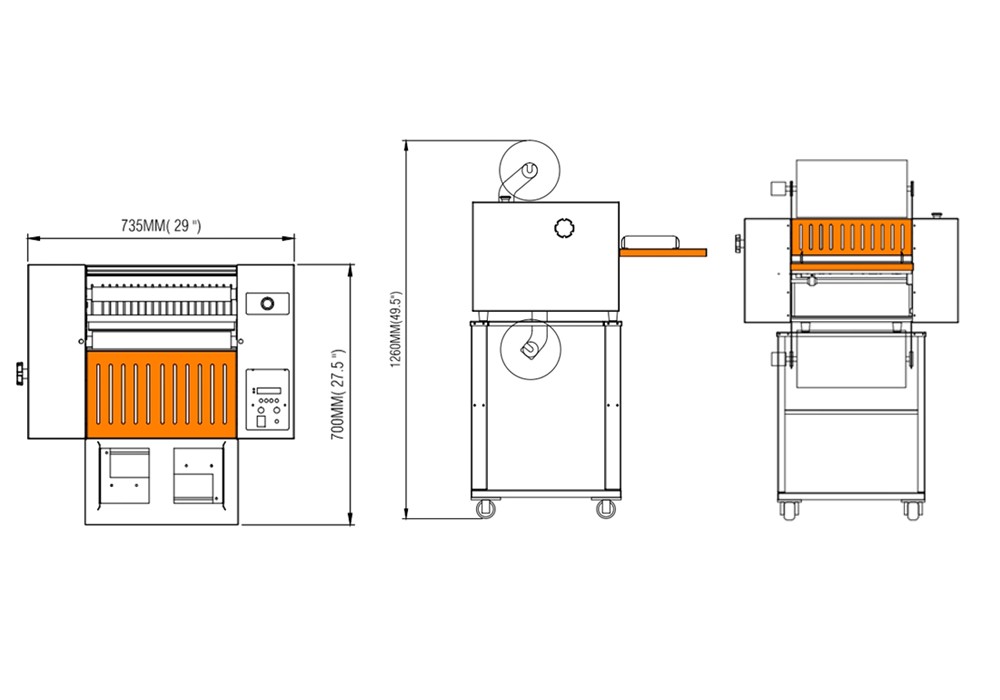

Floor Dimensions

Thermal Lamination LP13 SLm

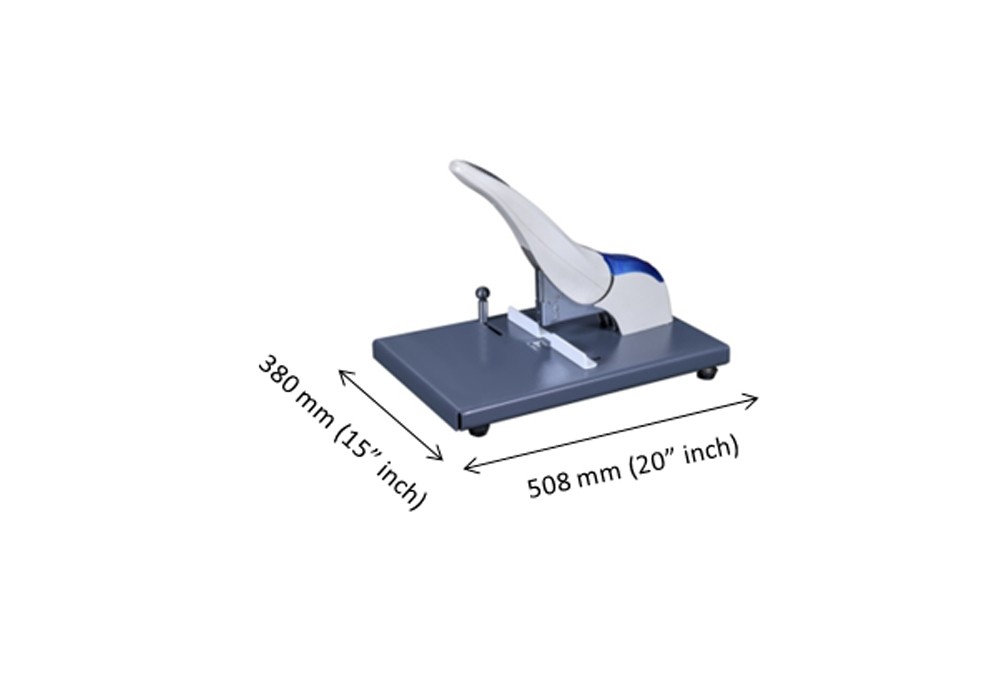

Creasing Machine

Thermal Lamination LP13 SLm

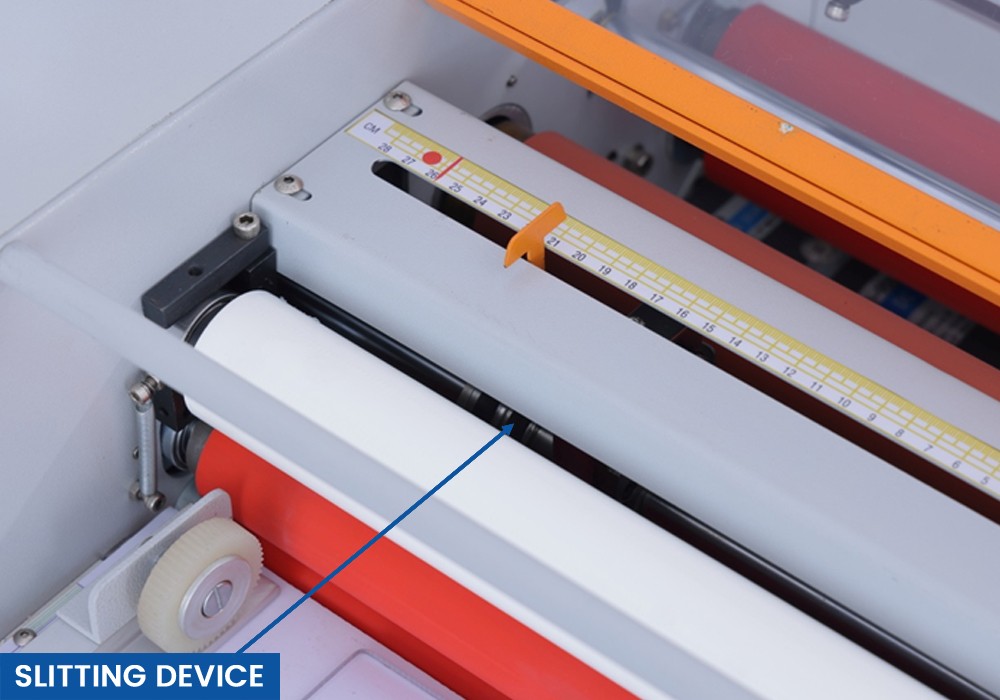

Slitting Device

Thermal Lamination LP13 SLm

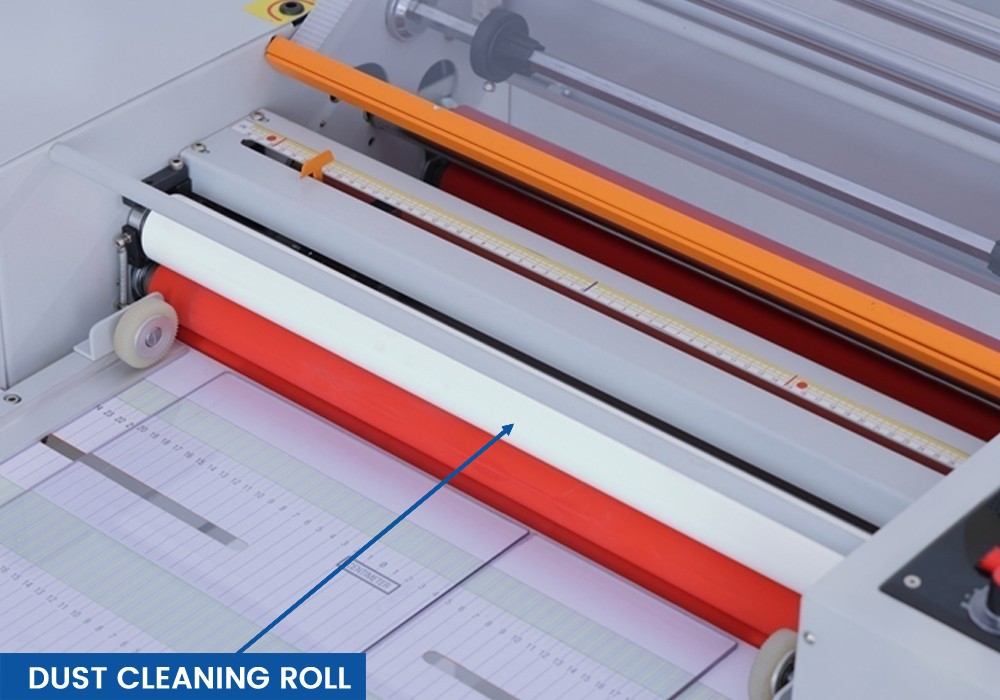

Dust Cleaning Roll

Thermal Lamination LP13 SLm

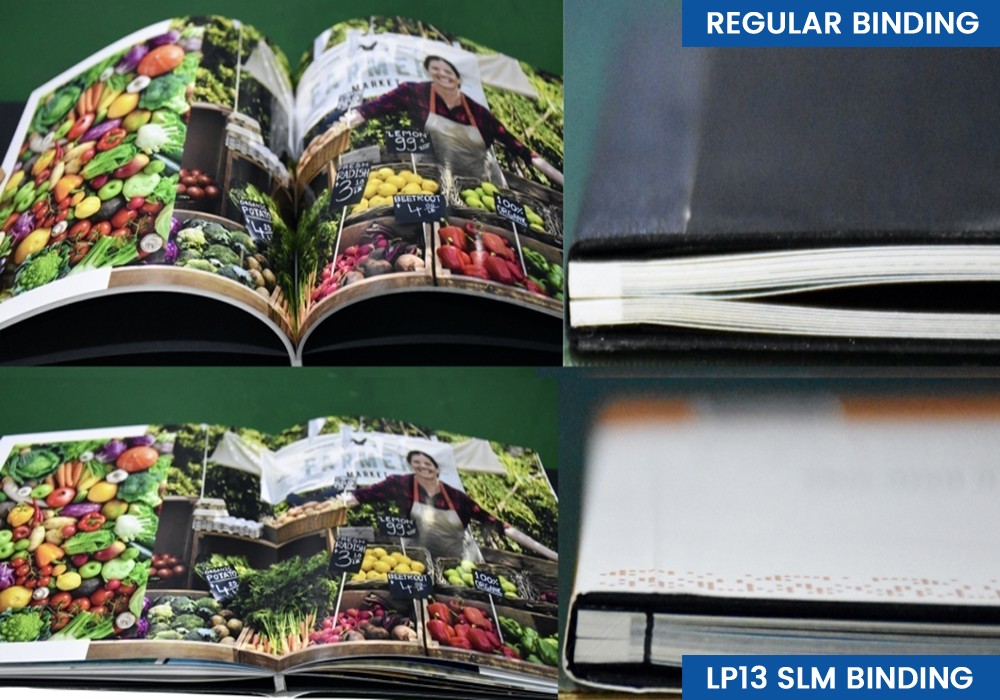

LP13 SLm Binding

Thermal Lamination LP13 SLm

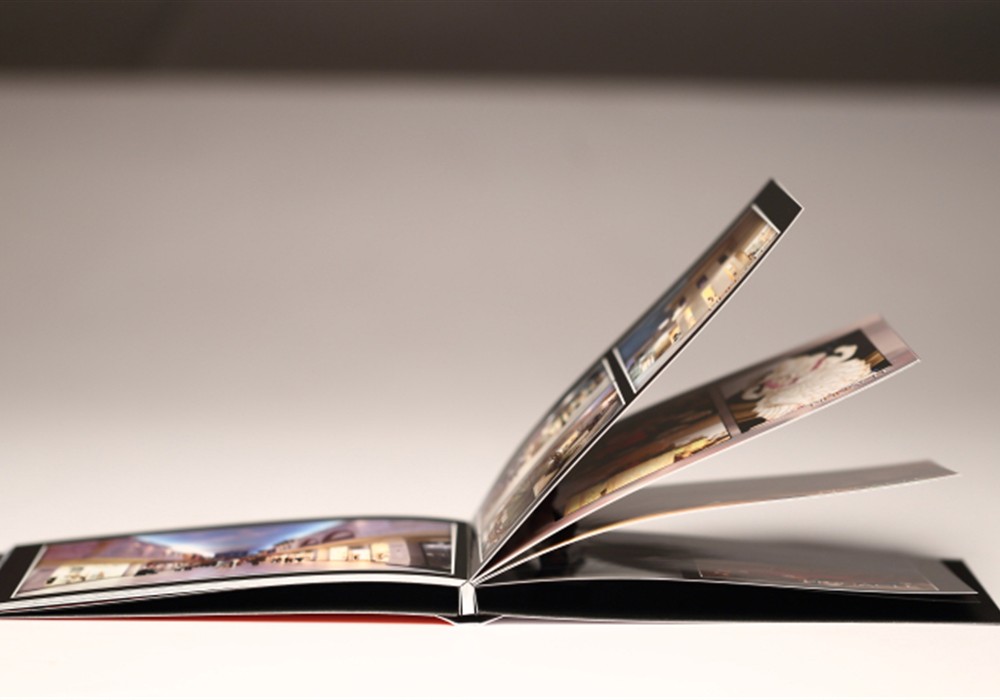

Finish Image
