Thermal Lamination LP13 FL

Thermal Lamination LP13 FL

Key Features

  • User friendly Keypad Display to operate various functions.
  • Sensor has been provided to maintain Accurate Temperature.
  • Easily controlled speed for varied papers and lamination films, speed is up to 5mtrs/min.
  • Accurate Combination of Foiling and Laminating processes.
  • Compact design.

Thermal LP13 FL is Pinnacle’s latest model developed, especially to give an exotic and enhanced finishing to the media / prints. As the name implies, Thermal LP13 FL is a compact model, that has two key functions of Prints Foiling the embossed UV area and Laminating for Single side or Double side option.

Specification

  • Machine Dimension: 717 x 578 x 373 (mm)
  • Power Supply: 220V AC (50 Hz)
  • Power Consumption: 2000 Watts
  • Lamination Speed: Upto 5 Mtr./Min.
  • Foiling Area & Laminating: 305 mm | 12” (inch)
  • Paper Path: 360 mm | 14” (inch)
Thermal Lamination LP13 FL

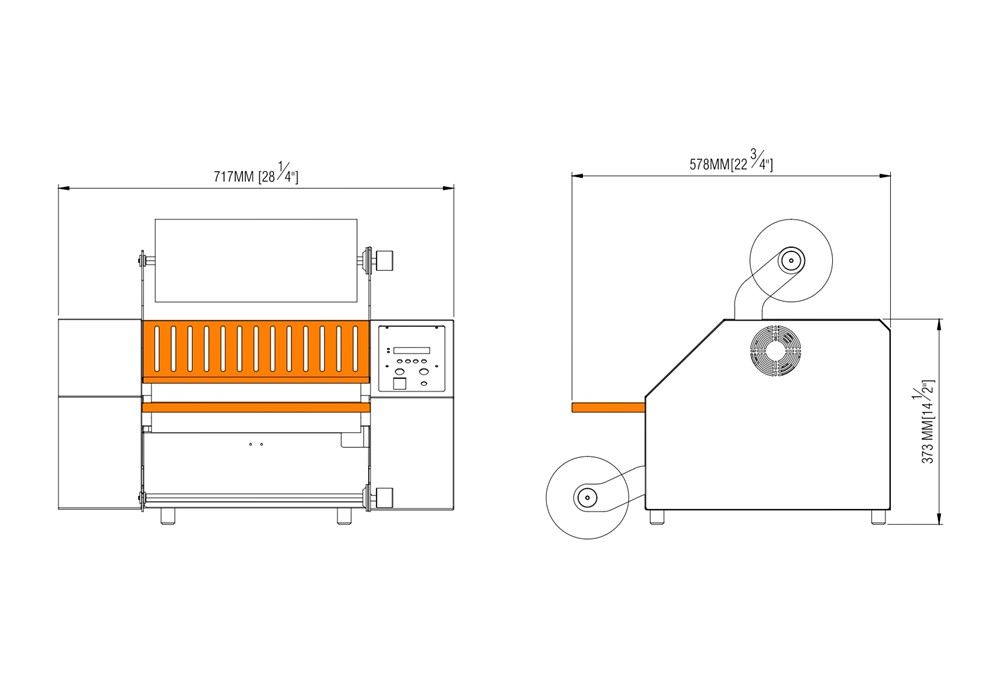

Floor Dimensions

Thermal Lamination LP13 FL

Product

Thermal Lamination LP13 FL

Product
