Key Features

Manual Feeding

  • Manual Feeding: For enhanced precision and accuracy in feeding, the Roller is specifically programmed to prevent overlapping and maintain a consistent distance between two sheets.

One Slitting Device

  • The Slitting and Tapping Device is fixed, but we can Adjust the Paper guide to align with the Slitting area on the Print.

Some Photobooks that are made by using a special Media, which has an exclusive texture and the Media itself has a rich and enhanced surface, e.g., Texture paper, Metallic paper, Luster paper, etc. Laminating the Special Media reduces the charm and richness of the Special Media. We have designed a special machine, AccuSlit B-20, to solve this problem. AccuSlit B-20, Slits and Tapes the Spine Area, at the same time, by strengthening and adding flexibility to the Spine side, inspite of the Slitting process. AccuSlit B-20 is a multi-functional Slit and Strip Bonding machine for creating a complete Lay Flat Opening in a Photobook. Here, the Media is manually feeded. The Slitting distance from the Spine is adjustable. The Paper Guide, provided in AccuSlit B-20, helps in setting and maintaining the distance from the Spine on one side.

Specification

  • Machine Dimension: 760 x 610 x 1270 ( mm )
  • Power Supply: 220V AC ( 50 Hz )
  • Power Consumption: 500 WATTS
  • Speed: UPTO 15 SHEETS / MIN A3 SIZE
  • Max Paper Size: 510 mm x 510 mm | 20” x 20” (INCH)
  • Min Paper Size: 200 mm x 200 mm | 8” x 8”(INCH)
  • Paper Thickness: MIN 150 gsm – MAX 300 gsm
  • Tape Size: 15mm x 0.025mm
  • Max Spine: UPTO 20mm
  • Air Compressor: PNEUMATIC CONNECTION REQUIRED
AccuSlit B20 - Slitting & Tapping Machine

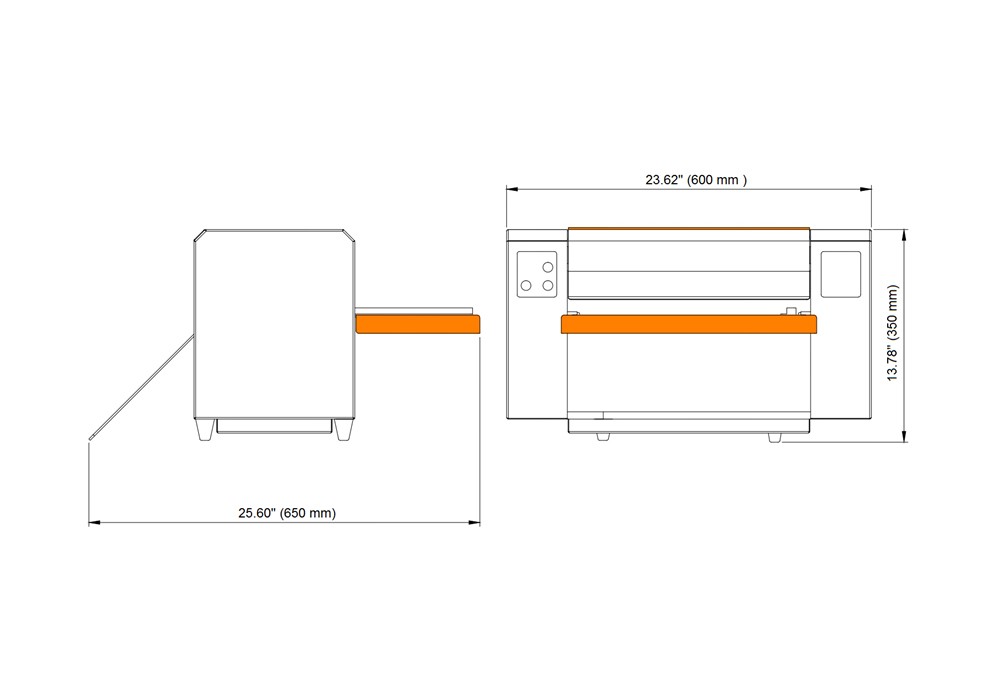

Floor Dimensions

AccuSlit B20 - Slitting & Tapping Machine

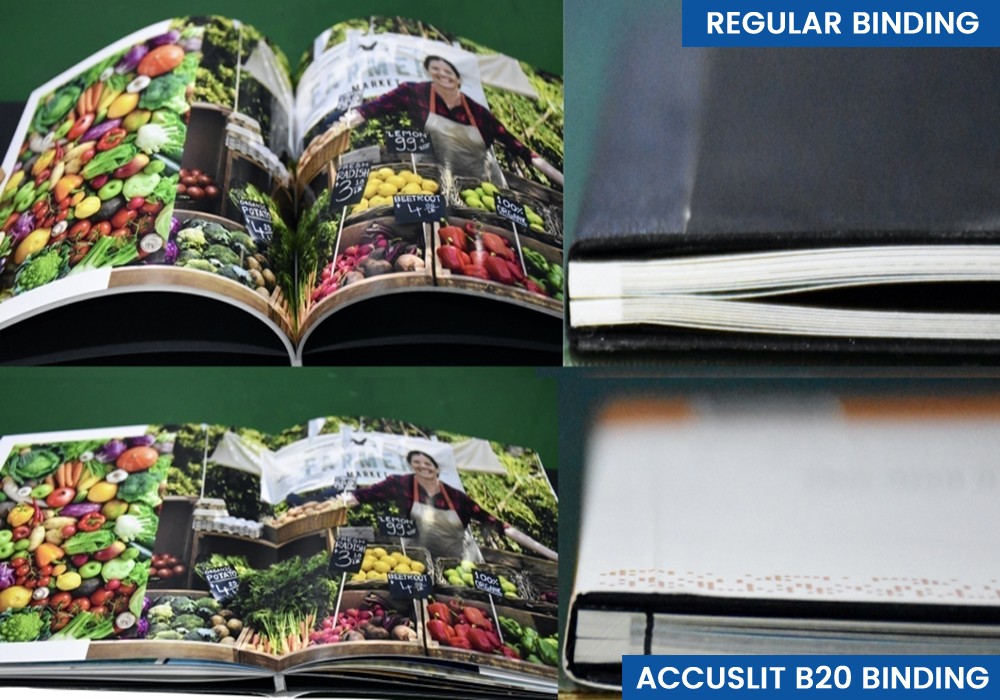

Binding

AccuSlit B20 - Slitting & Tapping Machine

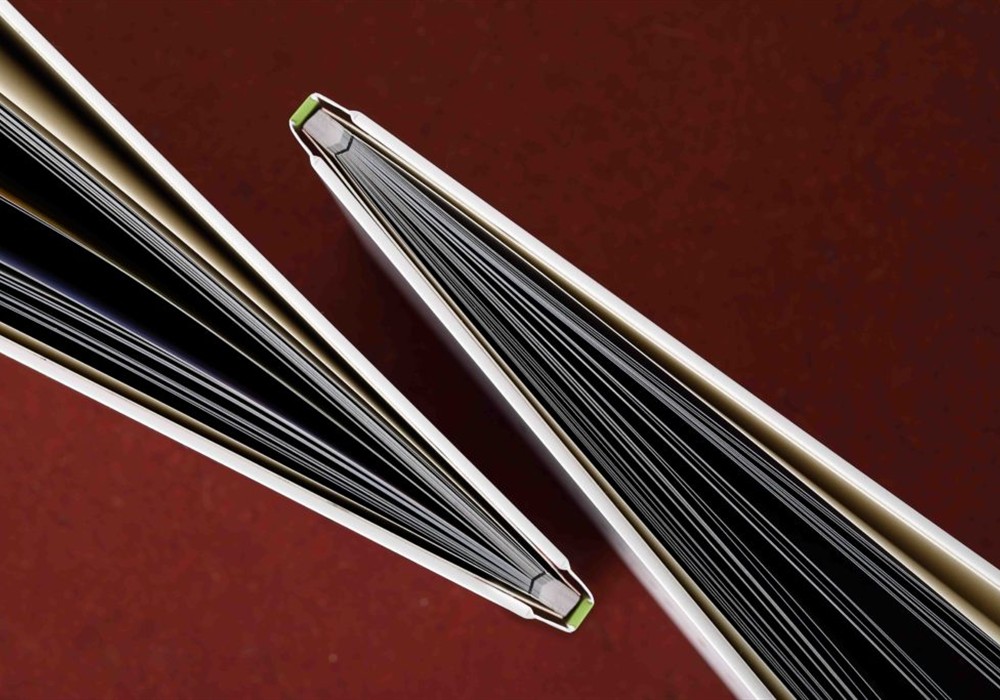

Finish Image
